This page is based on a Jupyter notebook.

Seabed response to water waves

In this benchmark example, the response of a seabed to water waves is determined by the application of the theory of poroelasticity. The seabed is described as a homogeneous poroelastic medium consisting of a solid phase (i.e. sand grains) and pores that are quasi-saturated with a Newtonian fluid, such as water. The pores are not completely saturated with water as they contain small bubbles of air, which cause the compressibility of the pore space. The pressure along the bottom of the sea depends on the water level and therefore varies according to the water waves in space as well as time. Arnold Verruijt in his book “Theory and problems of poroelasticity” [1] derives an analytical solution of the stress distribution in the seabed for the case of sinusoidal water waves. For the analytical solution, some assumptions have been made:

disregarded body forces
homogenous linear elastic material
compressibility of the particles is taken into account
water waves are stationary and only dependent on one horizontal direction (x-direction in this example)
plain strain condition

The last two assumptions allow a simplification of the three-dimensional seabed to a planar geometry.

For verification of the numerical model, Arnold Verruijt’s analytical solution will be compared to the results of the numerical calculation. The behaviour of the seabed depends on various parameters describing the soil, fluid and wave properies. In this example, the parameters of both the analytical and the numerical solution are chosen as follows:

Input parameters

$$ \begin{aligned} &\begin{array}{llll} C_{f} & \textsf{compressibility of the fluid} & \textsf{[1/Pa]} & C_{f} = 0\,\textsf{Pa}^{-1}\\ C_{s} & \textsf{compressibility of the solid particles}& \textsf{[1/Pa]} & C_{s} = 0\,\textsf{Pa}^{-1}\\ G & \textsf{shear modulus} & \textsf{[Pa]} & G = 100\, \textsf{kPa} \\ K & \textsf{bulk modulus} & \textsf{[Pa]} & K = \frac{2}{3} G \ (\textsf{with } \nu = 0) \\ L & \textsf{wave length} & \textsf{[m]} & L = 100 \textsf{ m} \\ T & \textsf{periodic time} & \textsf{[s]} & T=\frac{1}{f} = 10\,\textsf{s} \\ \gamma_{w} & \textsf{volumetric weight of water} & \textsf{[kN/m³]} & \gamma_{w} = 9,81\,\textsf{kN/m³} \\ \kappa & \textsf{(intrinsic) permeability} & \textsf{[m²]} & \kappa = 10^{-11}\,\textsf{m² } ( \textsf{equals } k_{f}=10^{-4} \textsf{ m/s} ) \\ \mu & \textsf{dynamic viscosity of water} & \textsf{[Pa s]} & \mu = 1.3\,\textsf{mPa s } ( \textsf{at } \theta=10\,\textsf{°C}) \\ \nu & \textsf{Poisson's ratio} & \textsf{[-]} & \nu = 0\\ \end{array} \end{aligned} $$

Derived parameters

$$ \begin{aligned} &\begin{array}{llll} c_{v} & \textsf{coefficient of consolidation} & \textsf{[m²/s]} & c_{v} = \frac{kG(1+m)}{(1+SG(1+m))\gamma_{w}} = \frac{k(K+\frac{4}{3}G)}{(1+S(K+\frac{4}{3}G))\gamma_{w}} \\ m & \textsf{dimensionless parameter} & \textsf{[-]} & m = \frac{1}{1-2\nu} = \frac{K+\frac{1}{3}G}{G} \\ k & \textsf{hydraulic conductivity} & \textsf{[m/s]} & k = \frac{\kappa\rho_{f}g}{\mu} \\ C_{m} & \textsf{compressibility of the porous medium} & \textsf{[1/Pa]}& C_{m} = \frac{1}{K} \\ S & \textsf{storativity of the pore space}& \textsf{[-]} & S=nC_{f}+(\alpha-n)C_{s} \\ \alpha & \textsf{Biot coefficient} & \textsf{[-]} & \alpha=1-\frac{C_{s}}{C_{m}} \\ \lambda & \textsf{wave number} & \textsf{[1/m]} & \lambda=\frac{\omega}{c} = \frac{\omega T}{L} \\ \xi^2 & \textsf{complex parameter} & \textsf{[1/m²]} & \xi^2 = \lambda^2 + \frac{\omega}{c_{v}}i \\ \omega & \textsf{frequency of the wave} & \textsf{[1/s]} & \omega = 2 \pi f \\ \end{array} \end{aligned} $$

Analytical solution for stationary waves

Boundary conditions

The considered region is the half plane $y>0$ with a load in the form of a stationary wave applied on the surface $y=0$. The boundary conditions at $y=0$ are:

$$ \begin{align} p&=\tilde{p}\cdot e^{i(\omega t-\frac{\pi}{2})}\cdot\cos(\lambda x) \\ \sigma'_{yy}&=0 \\ \sigma'_{xy}&=0 \end{align} $$

where $p$ is the pore pressure, $\tilde{p}$ is the amplitude of the applied load, $\sigma'_{yy}$ is the effective vertical stress and $\sigma'_{xy}$ is the effective shear stress. The boundary condition of the pore pressure describes the space- and time-dependent water wave. Compared to Arnold Verruijt’s solution, in this example there is a phase shift of $-\frac{\pi}{2}$ in the time-dependent part. The phase shift is necessary to obtain a water wave that starts oszillating from the equilibrium state (sine instead of cosine) and thus to be able to set an initial condition of $p=0$ Pa on the whole domain in the numerical solution.

With these boundary conditions, the following four constants are determined:

$$ \begin{align} B_{1} &= (1+m)(\xi^2-\lambda^2)-2\lambda(\xi-\lambda) \\ B_{2} &= 2m\theta\lambda\xi+\theta[(1+m)(\xi^2-\lambda^2)-2\lambda(\xi-\lambda)] \\ B_{3} &= 2m\theta\lambda\\ D &= 2\lambda[2\lambda(\xi-\lambda)-(1+m)(1+m\theta)(\xi^2-\lambda^2)] \end{align} $$

The stresses

For the given boundary conditions, the pore pressure and the effective stresses can be calculated with the following equations. According to the sign convention commonly used in soil mechanics, compressive stresses are positive and tensile stresses are negative. In all these equations, the real part is to be taken only.

$$ \begin{align} \frac{p}{\tilde{p}} &= \mathscr{R}\left\{\frac{-2\lambda B_{1}\cdot e^{-\lambda y}-(1+m)(\xi^2-\lambda^2)B_{3}\cdot e^{-\xi y}}{D}\cdot e^{i(\omega t-\frac{\pi}{2})}\cdot\cos(\lambda x)\right\} \\ \\ \frac{\sigma'_{xx}}{\alpha\tilde{p}} &= \mathscr{R}\left\{\frac{[-2(m-1)\lambda\theta+2\lambda(1+m\theta)\lambda y]B_{1}\cdot e^{-\lambda y}-2\lambda B_{2} \cdot e^{-\lambda y}+[(m-1)(\xi^2-\lambda^2)-2\lambda^2]B_{3} \cdot e^{-\xi y}}{D} \cdot e^{i(\omega t-\frac{\pi}{2})} \cdot \cos(\lambda x) \right\} \\ \\ \frac{\sigma'_{yy}}{\alpha\tilde{p}} &= \mathscr{R}\left\{\frac{[-2(m+1)\lambda\theta-2\lambda(1+m\theta)\lambda y]B_{1}\cdot e^{-\lambda y}+2\lambda B_{2} \cdot e^{-\lambda y}+[(m-1)(\xi^2-\lambda^2)+2\xi^2]B_{3} \cdot e^{-\xi y}}{D} \cdot e^{i(\omega t-\frac{\pi}{2})} \cdot \cos(\lambda x) \right\} \\ \\ \frac{\sigma'_{xy}}{\alpha\tilde{p}} &= \mathscr{R}\left\{\frac{[-2\lambda(1+m\theta)\lambda y-2\lambda\theta]B_{1}\cdot e^{-\lambda y}+2\lambda B_{2} \cdot e^{-\lambda y}+2\xi\lambda B_{3} \cdot e^{-\xi y}}{D} \cdot e^{i(\omega t-\frac{\pi}{2})} \cdot \sin(\lambda x) \right\} \\ \end{align} $$

import matplotlib.pyplot as plt… (click to toggle)

import matplotlib.pyplot as plt
import numpy as np

plt.rc("font", size=8)
plt.rc("axes", titlesize=10)
plt.rc("axes", labelsize=10)

import gmsh
import pyvista as pv

pv.set_plot_theme("document")
pv.set_jupyter_backend("static")

def compute_pressure_and_stresses(t, x, z):… (click to toggle)

def compute_pressure_and_stresses(t, x, z):
    n = 0.4
    G = 100e3  # [Pa]
    K = 2 / 3 * G  # [Pa]    (with ny=0)
    ny = 0  # E = 3K(1-2ny) = 2G(1+ny)
    Cf = 0  # in the book: Cf = 0.001/K
    Cs = 0
    Cm = 1 / K
    my = 1.3e-3  # [Pa*s]
    kappa = 1e-11  # [m²]    (medium sand, kf=10e-4 m/s)
    gamma_w = 9.81e3  # [Pa/m]
    lam = 2 * np.pi * 0.1 * 10 / 100
    omega = 2 * np.pi * 0.1

    k = kappa * gamma_w / my  # Gl. (1.33)
    alpha = 1 - Cs / Cm  # Gl. (4.15)
    S = n * Cf + (alpha - n) * Cs  # Gl. (1.28)
    theta = S * G / alpha**2  # Gl. (4.13)
    m = 1 / (1 - 2 * ny)  # = K+1/3*G/G                               # Gl. (4.5)
    cv = (
        k * G * (1 + m) / (alpha**2 * (1 + theta + m * theta) * gamma_w)
    )  # Gl. (4.12)
    xi_2 = complex(lam**2, (omega / cv))  # Gl. (4.19)

    B1 = (1 + m) * (xi_2 - lam**2) - 2 * lam * (np.sqrt(xi_2) - lam)
    B2 = 2 * m * theta * lam * np.sqrt(xi_2) + theta * (
        (1 + m) * (xi_2 - lam**2) - 2 * lam * (np.sqrt(xi_2) - lam)
    )
    B3 = 2 * m * theta * lam
    D = (
        2
        * lam
        * (
            2 * lam * (np.sqrt(xi_2) - lam)
            - (1 + m) * (1 + m * theta) * (xi_2 - lam**2)
        )
    )
    p_rel = np.real(
        (
            -2 * lam * B1 * np.exp(-lam * z)
            - (1 + m) * (xi_2 - lam**2) * B3 * np.exp(-np.sqrt(xi_2) * z)
        )
        / D
        * np.exp((omega * t - np.pi * 0.5) * 1j)
        * np.cos(lam * x)
    )
    sig_xx_rel = np.real(
        (
            (-2 * (m - 1) * lam * theta + 2 * lam * (1 + m * theta) * lam * z)
            * B1
            * np.exp(-lam * z)
            - 2 * lam * B2 * np.exp(-lam * z)
            + ((m - 1) * (xi_2 - lam**2) - 2 * lam**2)
            * B3
            * np.exp(-np.sqrt(xi_2) * z)
        )
        / D
        * np.exp((omega * t - np.pi * 0.5) * 1j)
        * np.cos(lam * x)
    )
    sig_zz_rel = np.real(
        (
            (-2 * (m + 1) * lam * theta - 2 * lam * (1 + m * theta) * lam * z)
            * B1
            * np.exp(-lam * z)
            + 2 * lam * B2 * np.exp(-lam * z)
            + ((m - 1) * (xi_2 - lam**2) + 2 * xi_2) * B3 * np.exp(-np.sqrt(xi_2) * z)
        )
        / D
        * np.exp((omega * t - np.pi * 0.5) * 1j)
        * np.cos(lam * x)
    )
    sig_xz_rel = np.real(
        (
            (-2 * lam * (1 + m * theta) * lam * z - 2 * lam * theta)
            * B1
            * np.exp(-lam * z)
            + 2 * lam * B2 * np.exp(-lam * z)
            + 2 * np.sqrt(xi_2) * lam * B3 * np.exp(-np.sqrt(xi_2) * z)
        )
        / D
        * np.exp((omega * t - np.pi * 0.5) * 1j)
        * np.sin(lam * x)
    )
    return p_rel, sig_xx_rel, sig_zz_rel, sig_xz_rel

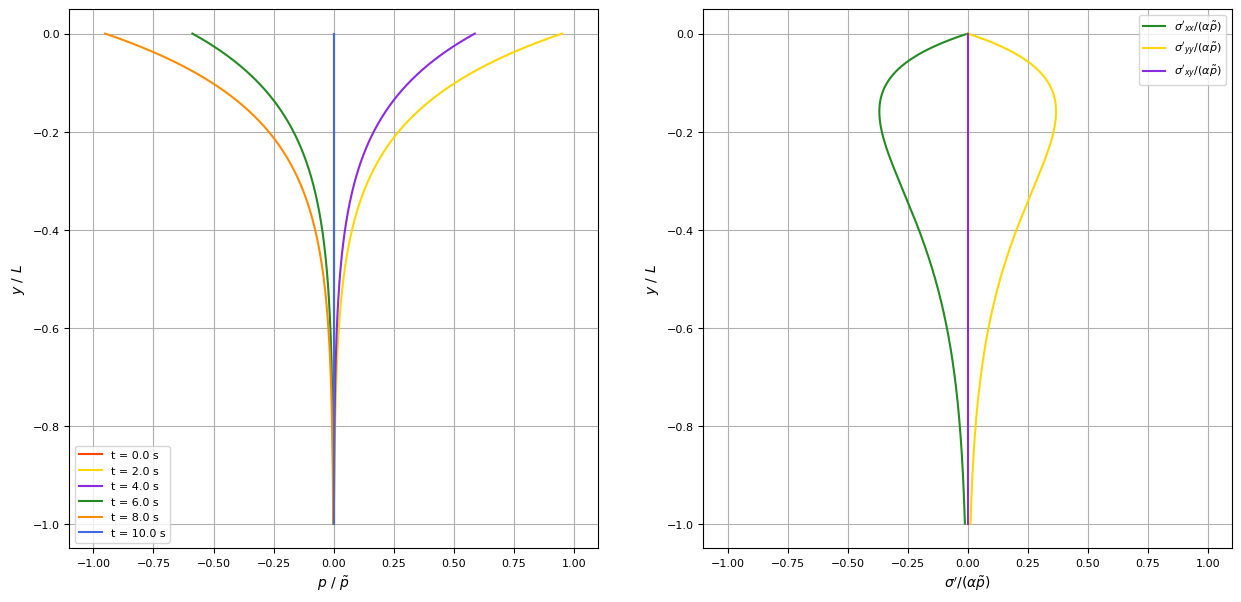

By evaluating these equations at different times $t$ and depths $y$, we gain a better understanding of the pressure and stress distribution in the seabed. The below plot illustrates the pore pressure and the amplitude of the effective stresses as a function of depth directly underneath an anti-node of the standing water wave (the place where the amplitude is at maximum, i.e. for $x = k \cdot \frac{L}{2}$, where $k=0, 1, 2,$ …).

Along the top edge of the seabed, the pore pressure is always as large as the applied load and the effective stresses are zero. This means, that all the change in pressure is absorbed by the fluid while the soil particles remain in their initial stress state (in this case zero, since body forces are being disregarded). The increased pore pressure at the top edge cannot propagate freely downwards into the seabed because seepage is limited by the hydraulic conductivity of the soil. Consequently, the pore pressure decreases with depth as the soil matrix gradually takes up the remaining share of the total stress in the seabed.

y = np.linspace(0, 100, 1000)… (click to toggle)

y = np.linspace(0, 100, 1000)
y_rel = y / 100
colors = {
    0: "orangered",
    2: "gold",
    4: "blueviolet",
    6: "forestgreen",
    8: "darkorange",
    10: "royalblue",
}

fig, ax = plt.subplots(ncols=2, figsize=(15, 7))
for idx in (0, 1):
    ax[idx].grid(True)
    ax[idx].set_ylabel("$y$ / $L$")
    ax[idx].set_xlim(-1.1, 1.1)

for t in [0, 2, 4, 6, 8, 10]:
    ax[0].plot(
        compute_pressure_and_stresses(t, 0, y)[0],
        -y_rel,
        color=colors[t],
        label=f"t = {t:.1f} s",
    )

t = 2.5
ax[0].set_xlabel("$p$ / $\\tilde{p}$")
ax[0].legend()
ax[1].plot(
    compute_pressure_and_stresses(t, 0, y)[1],
    -y_rel,
    color=colors[6],
    label=r"$\sigma'_{xx}/(\alpha\tilde{p})$",
)
# ax[1].plot(compute_pressure_and_stresses(t,0,y)[1]+compute_pressure_and_stresses(t,0,y)[0], -y_rel, linestyle = "--", color = colors[3], label = "$\\sigma_{xx}$/$\\alpha\\tilde{p}$")  # Total horizontal stress
ax[1].plot(
    compute_pressure_and_stresses(t, 0, y)[2],
    -y_rel,
    color=colors[2],
    label=r"$\sigma'_{yy}/(\alpha\tilde{p})$",
)
# ax[1].plot(compute_pressure_and_stresses(t,0,y)[2]+compute_pressure_and_stresses(t,0,y)[0], -y_rel, linestyle = "--", color = colors[1], label = "$\\sigma_{yy}$/$\\alpha\\tilde{p}$")  # Total vertical stress
ax[1].plot(
    compute_pressure_and_stresses(t, 0, y)[3],
    -y_rel,
    color=colors[4],
    label=r"$\sigma'_{xy}/(\alpha\tilde{p})$",
)
ax[1].set_xlabel(r"$\sigma'/(\alpha\tilde{p})$")
ax[1].legend()

<matplotlib.legend.Legend at 0x7e9fc1df4a50>

png

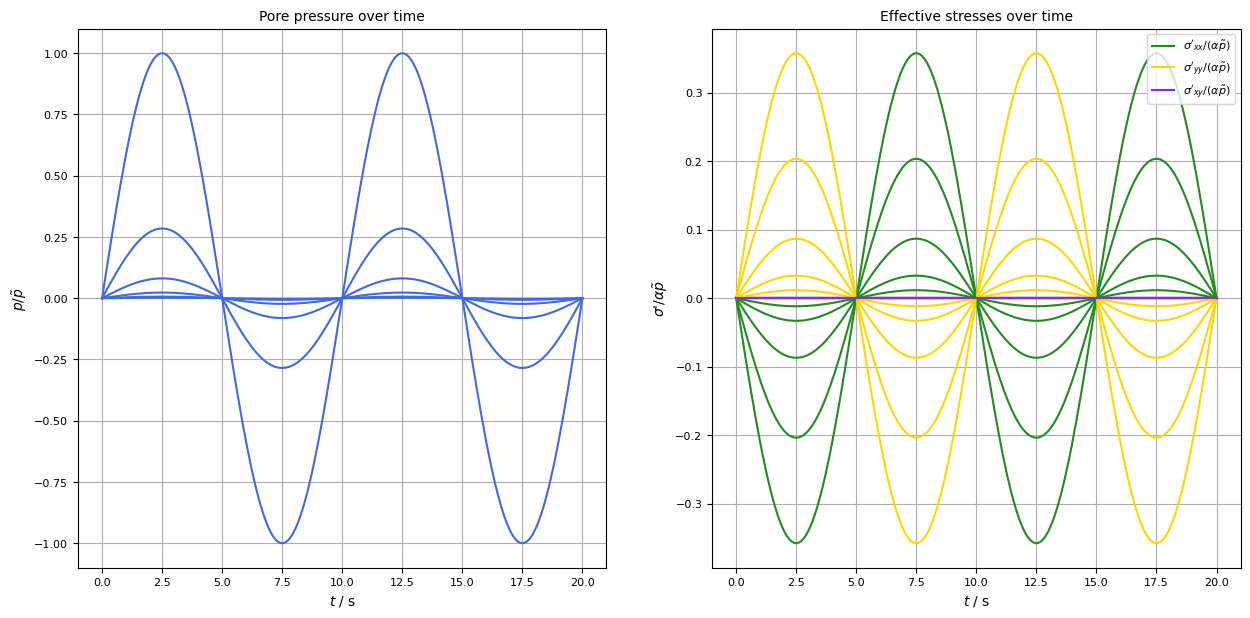

The following plot illustrates the pore pressure and the effective stresses at different depths underneath an anti-node over time. Here it becomes clear that the vertical and the horizontal effective stresses behave symmetrically in space as well as time.

t = np.linspace(0, 20, 200)… (click to toggle)

t = np.linspace(0, 20, 200)
colors = {1: "gold", 2: "blueviolet", 3: "forestgreen", 4: "royalblue"}

fig, ax = plt.subplots(ncols=2, figsize=(15, 7))
for idx in (0, 1):
    ax[idx].grid(True)
    ax[idx].set_xlabel("$t$ / s")

for y in np.linspace(0, 100, 6):
    ax[0].plot(t, compute_pressure_and_stresses(t, 0, y)[0], color=colors[4])
    ax[0].set_ylabel("$p/\\tilde{p}$")
    ax[1].plot(
        t,
        compute_pressure_and_stresses(t, 0, y)[1],
        color=colors[3],
        label=r"$\sigma'_{xx}/(\alpha\tilde{p})$",
    )
    ax[1].plot(
        t,
        compute_pressure_and_stresses(t, 0, y)[2],
        color=colors[1],
        label=r"$\sigma'_{yy}/(\alpha\tilde{p})$",
    )
    ax[1].plot(
        t,
        compute_pressure_and_stresses(t, 0, y)[3],
        color=colors[2],
        label=r"$\sigma'_{xy}/(\alpha\tilde{p})$",
    )
    if y == 0:
        ax[1].legend(loc="upper right")

ax[1].set_ylabel("$\\sigma$'/$\\alpha\\tilde{p}$")


ax[0].set_title("Pore pressure over time")
ax[1].set_title("Effective stresses over time")

Text(0.5, 1.0, 'Effective stresses over time')

png

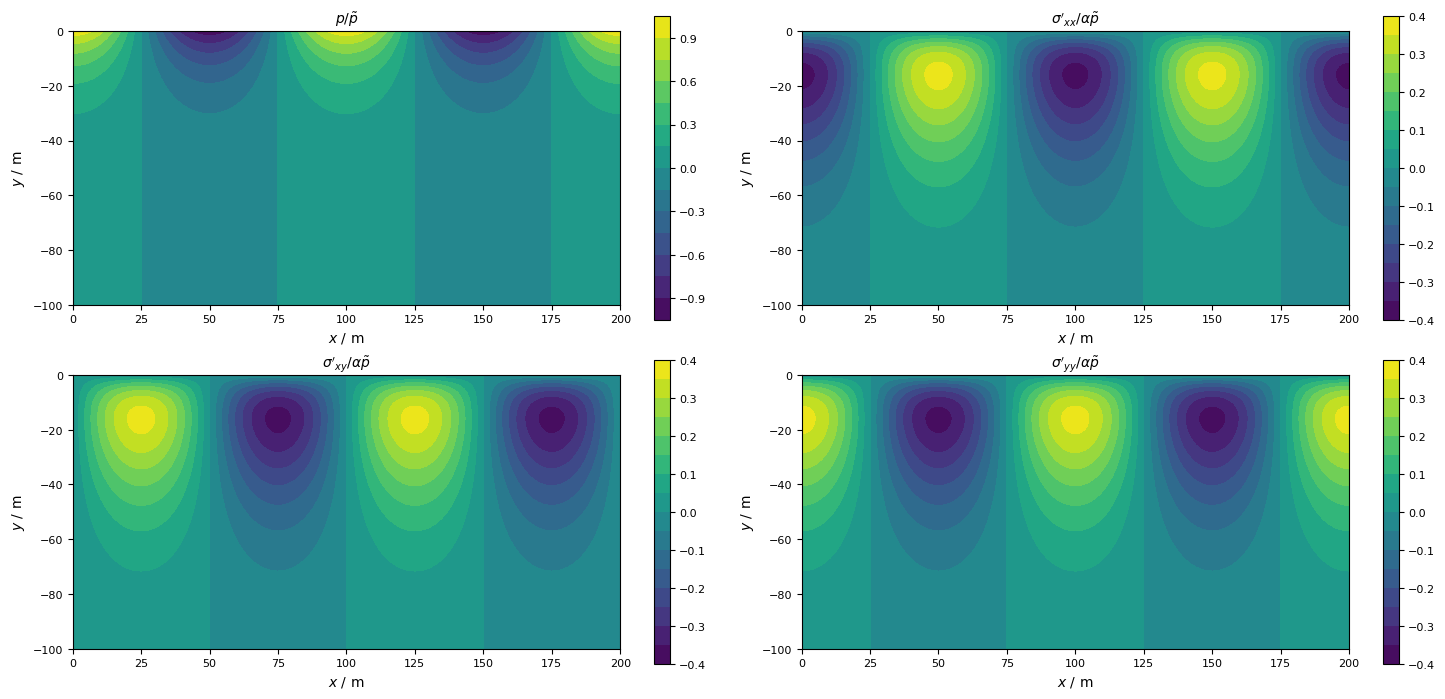

For a better understanding of the planar pressure and stress distribution, the following 2D color-plots are helpful. Each of the diagramms illustrates the pressure or stress distribution at a timepoint, where the applied load is at maximum.

x, y = np.meshgrid(np.linspace(0, 200, 1000), np.linspace(0, 100, 1000))… (click to toggle)

x, y = np.meshgrid(np.linspace(0, 200, 1000), np.linspace(0, 100, 1000))
t = 2.5

fig, ax = plt.subplots(ncols=2, nrows=2, figsize=(15, 7))
l1 = ax[0][0].contourf(x, -y, compute_pressure_and_stresses(t, x, y)[0], 15)
l2 = ax[0][1].contourf(x, -y, compute_pressure_and_stresses(t, x, y)[1], 15)
l3 = ax[1][1].contourf(x, -y, compute_pressure_and_stresses(t, x, y)[2], 15)
l4 = ax[1][0].contourf(x, -y, compute_pressure_and_stresses(t, x, y)[3], 15)
fig.colorbar(l1, ax=ax[0][0])
fig.colorbar(l2, ax=ax[0][1])
fig.colorbar(l3, ax=ax[1][1])
fig.colorbar(l4, ax=ax[1][0])
for i in (0, 1):
    for j in (0, 1):
        ax[i][j].set_aspect("equal")
        ax[i][j].set_xlabel("$x$ / m")
        ax[i][j].set_ylabel("$y$ / m")
ax[0][0].set_title("$p/\\tilde{p}$")
ax[0][1].set_title("$\\sigma'_{xx}/\\alpha\\tilde{p}$")
ax[1][1].set_title("$\\sigma'_{yy}/\\alpha\\tilde{p}$")
ax[1][0].set_title("$\\sigma'_{xy}/\\alpha\\tilde{p}$")
fig.tight_layout()

png

Numerical solution

In the following section, the behavior of the seabed under the influence of standing water waves is solved numerically by FEM in OpenGeoSys. The principle of Finite Element Methods is to subdivide a large and complex object into smaller parts (called finite elements), which is achieved by the construction of a mesh of the object. For each of the meshes’ nodes, an approximation of the real solution is calculated. Therefore, numerical solutions always contain errors that originate in the so-called space discretization. The finer the resolution of a mesh, the more accurately the approximation matches the real solution. However, a large number of elements and nodes also causes longer calculation times. A description of the meshing process for this specific example follows below.

For transient problems, a time discretization must also be carried out in addition to the space discretization. In doing so, the observed time period is divided into finite time steps. Here too, smaller timesteps come along with more accurate results but longer calculation times. For the numerical simulation of the seabed, a timestep of $\Delta t = 0.25$ s was chosen. With a periodic time of the water wave of $T=10$ s, there are $40$ timesteps per period. The number of timesteps per period should be large enough to enable an accurate representation of the wave’s sinusoidal shape.

Meshing

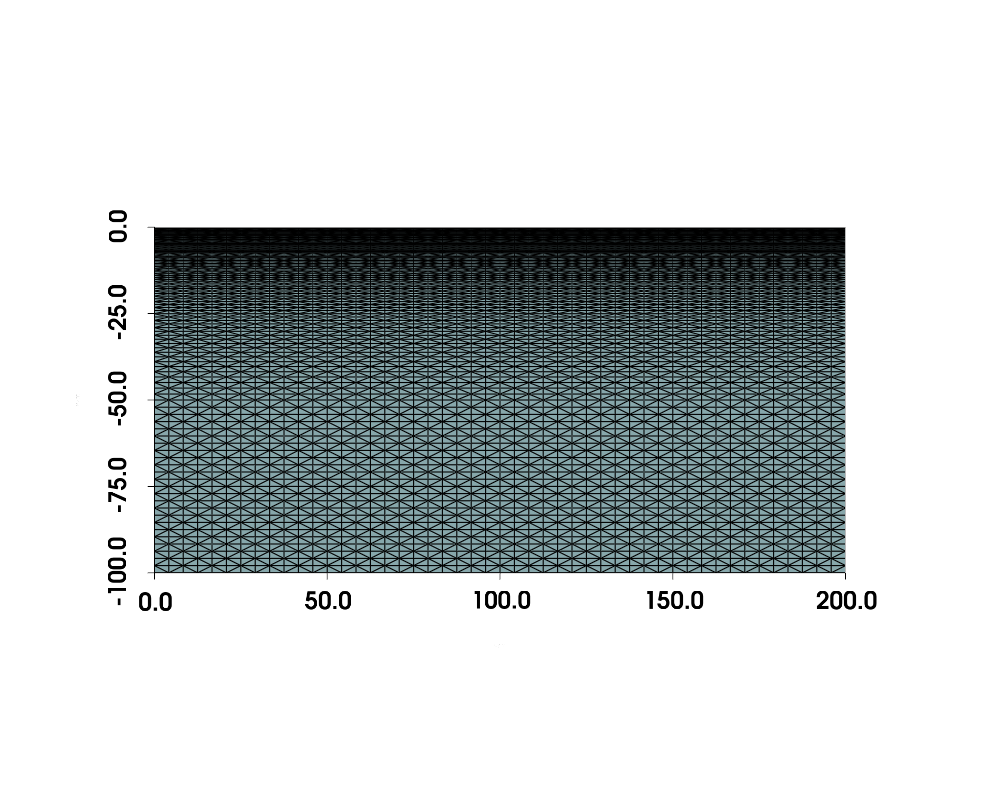

Since the problem can be simplified to a planar geometry, a two-dimensional mesh is constructed for the numerical solution. Here, the Gmsh application programming interface (API) for python is used to generate a structured mesh of rectangular shape. This allows a parametric input of the geometry’s dimensions and the mesh refinement. The generated mesh consists of quadratic elements, which have mid-side-nodes. In that way, displacements between nodes at the vertices can be interpolated using a higher order polynomial.

For the further use in OpenGeoSys, the gmsh-mesh is converted to the vtu-format using the msh2vtu script.

import os… (click to toggle)

import os
from pathlib import Path

out_dir = Path(os.environ.get("OGS_TESTRUNNER_OUT_DIR", "_out"))
if not out_dir.exists():
    out_dir.mkdir(parents=True)

def generate_mesh_axb(a, b, Nx, Ny, P):… (click to toggle)

def generate_mesh_axb(a, b, Nx, Ny, P):
    output_file = f"{out_dir}/square_{a}x{b}.msh"

    lc = 0.5

    # Before using any functions in the Python API, Gmsh must be initialized:
    gmsh.initialize()
    gmsh.option.setNumber("General.Terminal", 1)
    gmsh.model.add("rectangle")

    # Dimensions
    dim1 = 1
    dim2 = 2

    # Outer points (ccw)
    gmsh.model.geo.addPoint(0, -b, 0, lc, 1)
    gmsh.model.geo.addPoint(a, -b, 0, lc, 2)
    gmsh.model.geo.addPoint(a, -b / 2, 0, lc, 3)
    gmsh.model.geo.addPoint(a, 0, 0, lc, 4)
    gmsh.model.geo.addPoint(0, 0, 0, lc, 5)
    gmsh.model.geo.addPoint(0, -b / 2, 0, lc, 6)

    # Outer lines (ccw)
    gmsh.model.geo.addLine(1, 2, 1)
    gmsh.model.geo.addLine(2, 3, 2)
    gmsh.model.geo.addLine(3, 4, 3)
    gmsh.model.geo.addLine(4, 5, 4)
    gmsh.model.geo.addLine(5, 6, 5)
    gmsh.model.geo.addLine(6, 1, 6)
    gmsh.model.geo.addLine(6, 3, 7)

    # The third elementary entity is the surface. In order to define a surface
    # from the curves defined above, a curve loop has first to be defined (ccw).
    gmsh.model.geo.addCurveLoop([1, 2, -7, 6], 1)
    gmsh.model.geo.addCurveLoop([7, 3, 4, 5], 2)

    # Add plane surfaces defined by one or more curve loops.
    gmsh.model.geo.addPlaneSurface([1], 1)
    gmsh.model.geo.addPlaneSurface([2], 2)

    gmsh.model.geo.synchronize()

    #  Prepare structured grid
    gmsh.model.geo.mesh.setTransfiniteCurve(1, Nx)
    gmsh.model.geo.mesh.setTransfiniteCurve(2, int(Ny * 0.3))
    gmsh.model.geo.mesh.setTransfiniteCurve(3, Ny, "Progression", -P)
    gmsh.model.geo.mesh.setTransfiniteCurve(4, Nx)
    gmsh.model.geo.mesh.setTransfiniteCurve(5, Ny, "Progression", P)
    gmsh.model.geo.mesh.setTransfiniteCurve(6, int(Ny * 0.3))
    gmsh.model.geo.mesh.setTransfiniteCurve(7, Nx)

    gmsh.model.geo.mesh.setTransfiniteSurface(1, "Alternate")
    gmsh.model.geo.mesh.setTransfiniteSurface(2, "Alternate")

    gmsh.model.geo.mesh.setRecombine(dim2, 1)
    gmsh.model.geo.mesh.setRecombine(dim2, 2)

    gmsh.model.geo.synchronize()

    # Physical groups (only this gets saved to file per default)
    Bottom = gmsh.model.addPhysicalGroup(dim1, [1])
    gmsh.model.setPhysicalName(dim1, Bottom, "Bottom")

    Right = gmsh.model.addPhysicalGroup(dim1, [2, 3])
    gmsh.model.setPhysicalName(dim1, Right, "Right")

    Top = gmsh.model.addPhysicalGroup(dim1, [4])
    gmsh.model.setPhysicalName(dim1, Top, "Top")

    Left = gmsh.model.addPhysicalGroup(dim1, [5, 6])
    gmsh.model.setPhysicalName(dim1, Left, "Left")

    Plate = gmsh.model.addPhysicalGroup(dim2, [1, 2])
    gmsh.model.setPhysicalName(dim2, Plate, "Plate")

    gmsh.model.geo.synchronize()

    gmsh.model.mesh.generate(dim2)
    # gmsh.option.setNumber('Mesh.SecondOrderIncomplete', 1)   # serendipity elements
    gmsh.model.mesh.setOrder(2)  # higher order elements (quadratic)
    gmsh.write(output_file)

    gmsh.finalize()

generate_mesh_axb(200, 100, 25, 45, 1.07)

Info    : Meshing 1D...
Info    : [  0%] Meshing curve 1 (Line)
Info    : [ 20%] Meshing curve 2 (Line)
Info    : [ 30%] Meshing curve 3 (Line)
Info    : [ 50%] Meshing curve 4 (Line)
Info    : [ 60%] Meshing curve 5 (Line)
Info    : [ 80%] Meshing curve 6 (Line)
Info    : [ 90%] Meshing curve 7 (Line)
Info    : Done meshing 1D (Wall 0.000629431s, CPU 0.000577s)
Info    : Meshing 2D...
Info    : [  0%] Meshing surface 1 (Transfinite)
Info    : [ 60%] Meshing surface 2 (Transfinite)
Info    : Done meshing 2D (Wall 0.000108184s, CPU 9.8e-05s)
Info    : 1425 nodes 1534 elements
Info    : Meshing order 2 (curvilinear on)...
Info    : [  0%] Meshing curve 1 order 2
Info    : [ 20%] Meshing curve 2 order 2
Info    : [ 30%] Meshing curve 3 order 2
Info    : [ 40%] Meshing curve 4 order 2
Info    : [ 50%] Meshing curve 5 order 2
Info    : [ 60%] Meshing curve 6 order 2
Info    : [ 70%] Meshing curve 7 order 2
Info    : [ 80%] Meshing surface 1 order 2
Info    : [ 90%] Meshing surface 2 order 2
Info    : Done meshing order 2 (Wall 0.00767853s, CPU 0.004333s)
Info    : Writing '/var/lib/gitlab-runner/builds/F1XUyv4cx/0/ogs/build/release-all/Tests/Data/HydroMechanics/SeabedResponse/Stationary_waves/square_200x100.msh'...
Info    : Done writing '/var/lib/gitlab-runner/builds/F1XUyv4cx/0/ogs/build/release-all/Tests/Data/HydroMechanics/SeabedResponse/Stationary_waves/square_200x100.msh'

input_file = f"{out_dir}/square_200x100.msh"

!msh2vtu --keep_ids -r -o {out_dir} {input_file}… (click to toggle)

!msh2vtu --keep_ids -r -o {out_dir} {input_file}
assert _exit_code == 0  # noqa: F821
%cd {out_dir}
!identifySubdomains -f -m square_200x100_domain.vtu -- square_200x100_physical_group_*.vtu
%cd -

INFO:root:Output: square_200x100

INFO:root:Original mesh (read)
INFO:root:<meshio mesh object>
  Number of points: 5537
  Number of cells:
    line3: 24
    line3: 12
    line3: 44
    line3: 24
    line3: 44
    line3: 12
    quad9: 288
    quad9: 1056
  Cell sets: Bottom, Right, Top, Left, Plate, gmsh:bounding_entities
  Point data: gmsh:dim_tags
  Cell data: gmsh:physical, gmsh:geometrical
  Field data: Bottom, Right, Top, Left, Plate
INFO:root:Detected mesh dimension: 2
INFO:root:##
INFO:root:Domain mesh (written)
INFO:root:5537 points in 3 dimensions
INFO:root:cells: 1344 quad9
INFO:root:point_data=['gmsh:dim_tags']
INFO:root:cell_data=['gmsh:physical']
INFO:root:cell_sets=[]
INFO:root:##
INFO:root:Boundary mesh (written)
INFO:root:320 points in 3 dimensions
INFO:root:cells: 160 line3
INFO:root:point_data=['gmsh:dim_tags']
INFO:root:cell_data=['gmsh:physical']
INFO:root:cell_sets=[]
INFO:root:##
INFO:root:Submesh Bottom (written)

INFO:root:49 points in 3 dimensions
INFO:root:cells: 24 line3
INFO:root:point_data=['gmsh:dim_tags']
INFO:root:cell_data=['gmsh:physical']
INFO:root:cell_sets=[]
INFO:root:##
INFO:root:Submesh Right (written)
INFO:root:113 points in 3 dimensions
INFO:root:cells: 56 line3
INFO:root:point_data=['gmsh:dim_tags']
INFO:root:cell_data=['gmsh:physical']
INFO:root:cell_sets=[]
INFO:root:##
INFO:root:Submesh Top (written)
INFO:root:49 points in 3 dimensions
INFO:root:cells: 24 line3
INFO:root:point_data=['gmsh:dim_tags']
INFO:root:cell_data=['gmsh:physical']
INFO:root:cell_sets=[]
INFO:root:##
INFO:root:Submesh Left (written)
INFO:root:113 points in 3 dimensions
INFO:root:cells: 56 line3
INFO:root:point_data=['gmsh:dim_tags']
INFO:root:cell_data=['gmsh:physical']
INFO:root:cell_sets=[]
INFO:root:##
INFO:root:Submesh Plate (written)
INFO:root:5537 points in 3 dimensions
INFO:root:cells: 1344 quad9
INFO:root:point_data=['gmsh:dim_tags']
INFO:root:cell_data=['gmsh:physical']
INFO:root:cell_sets=[]
INFO:root:##

/var/lib/gitlab-runner/builds/F1XUyv4cx/0/ogs/build/release-all/Tests/Data/HydroMechanics/SeabedResponse/Stationary_waves

[2024-11-15 11:29:43.707] [ogs] [[32minfo[m] Mesh reading time: 0.0156767 s
[2024-11-15 11:29:43.713] [ogs] [[32minfo[m] MeshNodeSearcher construction time: 0.000249707 s
[2024-11-15 11:29:43.713] [ogs] [[32minfo[m] identifySubdomainMesh(): identifySubdomainMeshNodes took 8.132e-06 s
[2024-11-15 11:29:43.714] [ogs] [[32minfo[m] identifySubdomainMesh(): identifySubdomainMeshElements took 0.000419424 s
[2024-11-15 11:29:43.714] [ogs] [[32minfo[m] identifySubdomainMesh(): identifySubdomainMeshNodes took 1.4923e-05 s
[2024-11-15 11:29:43.714] [ogs] [[32minfo[m] identifySubdomainMesh(): identifySubdomainMeshElements took 0.000224259 s
[2024-11-15 11:29:43.714] [ogs] [[32minfo[m] identifySubdomainMesh(): identifySubdomainMeshNodes took 0.000385393 s
[2024-11-15 11:29:43.715] [ogs] [[32minfo[m] identifySubdomainMesh(): identifySubdomainMeshElements took 0.000633688 s
[2024-11-15 11:29:43.715] [ogs] [[32minfo[m] identifySubdomainMesh(): identifySubdomainMeshNodes took 1.4723e-05 s
[2024-11-15 11:29:43.715] [ogs] [[32minfo[m] identifySubdomainMesh(): identifySubdomainMeshElements took 0.000212942 s
[2024-11-15 11:29:43.715] [ogs] [[32minfo[m] identifySubdomainMesh(): identifySubdomainMeshNodes took 1.2529e-05 s
[2024-11-15 11:29:43.715] [ogs] [[32minfo[m] identifySubdomainMesh(): identifySubdomainMeshElements took 0.000177949 s
[2024-11-15 11:29:43.715] [ogs] [[32minfo[m] identifySubdomains time: 0.00220291 s

[2024-11-15 11:29:43.729] [ogs] [[32minfo[m] writing time: 0.0139943 s
[2024-11-15 11:29:43.733] [ogs] [[32minfo[m] Entire run time: 0.0412432 s

/var/lib/gitlab-runner/builds/F1XUyv4cx/0/ogs/build/release-all/.venv/lib/python3.11/site-packages/IPython/core/magics/osm.py:417: UserWarning: This is now an optional IPython functionality, setting dhist requires you to install the `pickleshare` library.
  self.shell.db['dhist'] = compress_dhist(dhist)[-100:]

/var/lib/gitlab-runner/builds/F1XUyv4cx/0/ogs/ogs/Tests/Data/HydroMechanics/SeabedResponse

The below figure shows the generated mesh with a width of $a=2L=200$ m and a height (or rather depth) of $b=L=100$ m.

Note: the origin of coordinates is located at ground level, therefore y-coordinates are negative

As was already visible in the analytical solution, the pressure and stress gradients are particularly high in the upper half of the geometry. Therefore, it makes sense to refine the mesh in this area.

pv.set_plot_theme("document")… (click to toggle)

pv.set_plot_theme("document")
pv.set_jupyter_backend("static")

mesh = pv.read(f"{out_dir}/square_200x100_domain.vtu")
plotter = pv.Plotter(window_size=[1000, 800])
plotter.add_mesh(mesh, show_edges=True, show_scalar_bar=False, color=None, scalars=None)

plotter.show_bounds(ticks="outside", xlabel="x / m", ylabel="y / m")
plotter.view_xy()
plotter.show()

/var/lib/gitlab-runner/builds/F1XUyv4cx/0/ogs/build/release-all/.venv/lib/python3.11/site-packages/pyvista/plotting/renderer.py:1735: PyVistaDeprecationWarning: `xlabel` is deprecated. Use `xtitle` instead.
  warnings.warn(
/var/lib/gitlab-runner/builds/F1XUyv4cx/0/ogs/build/release-all/.venv/lib/python3.11/site-packages/pyvista/plotting/renderer.py:1741: PyVistaDeprecationWarning: `ylabel` is deprecated. Use `ytitle` instead.
  warnings.warn(

png

Boundary and initial conditions

Because it would not be possible and useful to solve the problem for an infinitely extended seabed, the observed domain has limited dimensions. This however calls for the definition of boundary conditions at the edges of the domain. Boundary conditions constrain the value of a process variable (Dirichlet boundary condition) or the derivative of a process variable applied at the boundary of the domain (Neumann boundary condition). The process variables in this example are the (pore) pressure $p$ and the displacement $u$.

In this example, the boundary conditions are defined as follows:

Top:

$$ \begin{align} p(y=0)&=\tilde{p}\cdot \sin(\omega \cdot t) \cdot \cos(\frac{2 \pi}{L} \cdot x) \\ \sigma_{yy}(y=0)&=-\tilde{p}\cdot \sin(\omega \cdot t) \cdot \cos(\frac{2 \pi}{L} \cdot x) \end{align} $$

These boundary conditions represent the applied load in the form of a stationary wave with an amplitude of $\tilde{p} = 0.1\cdot10^5$ Pa. The Neumann boundary condition of the displacement equates to the vertical total stress (Attention: downwards direction is negative).

Bottom:

$$ %\begin{align} u_{y}(y=L) =0 %\end{align} $$

Left and right:

$$ \begin{align} u_{x}(x=0)&=0 \\ u_{x}(x=2L)&=0 \end{align} $$

Along the vertical lines directly underneath the anti-nodes of the wave, there is no horizontal displacement. Since the maximum loads appear in that area, the material evades symmetrically to both sides from this line to places of lower stress. For this reason, the vertical boundaries of the domain are chosen exactly along these lines.

Since the problem is time-dependent, initial conditions must be specified as well:

$$ \begin{align} \vec{u}(t=0)&=\vec{0} \\ p(t=0)&=0 \textsf{ Pa} \end{align} $$

Running the numerical model

from ogs6py import ogs

## Helper Functions… (click to toggle)

## Helper Functions
def read_timestep_mesh(a, time):
    reader = pv.PVDReader(f"{out_dir}/square_{a}x100.pvd")
    reader.set_active_time_point(int(time * 4))  # time [s], delta t = 0.25 s
    return reader.read()[0]


def slice_along_line(mesh, start_point, end_point):
    line = pv.Line(start_point, end_point, resolution=2)
    return mesh.slice_along_line(line)


def get_pressure_sorted(mesh):
    pressure = mesh.point_data["pressure_interpolated"]
    depth = mesh.points[:, 1]
    indices_sorted = np.argsort(depth)
    return pressure[indices_sorted]


def get_stresses_sorted(mesh):
    sigma = mesh.point_data["sigma"]
    depth = mesh.points[:, 1]
    indices_sorted = np.argsort(depth)
    sigma_xx = -sigma[indices_sorted, 0]  # switching sign convention
    sigma_yy = -sigma[indices_sorted, 1]
    # sigma_zz = - sigma[indices_sorted, 2]
    sigma_xy = +sigma[indices_sorted, 3]
    return sigma_xx, sigma_yy, sigma_xy  # ,sigma_zz


def get_depth_sorted(mesh):
    depth = mesh.points[:, 1]
    indices_sorted = np.argsort(depth)
    return depth[indices_sorted]


def compute_abs_and_rel_pressure_error(pressures, depth, t, x):
    num_points = pressures.shape[0]
    f_abs = np.zeros(num_points)
    f_rel = np.zeros(num_points)

    for pt_idx in range(num_points):
        y = -depth[pt_idx]
        pressure_ana = compute_pressure_and_stresses(t, x, y)[
            0
        ]  # returns pressure normalised to the pressure amplitude
        pressure_num = (
            pressures[pt_idx] / 0.1e5
        )  # absolute pressure divided by pressure amplitude
        f_abs[pt_idx] = pressure_num - pressure_ana

        if pressure_ana == 0:
            f_rel[pt_idx] = f_abs[pt_idx] / 1e-2
        else:
            f_rel[pt_idx] = f_abs[pt_idx] / pressure_ana

    return f_abs, f_rel


def compute_abs_and_rel_stress_error(_sigmas, depth, t, x):
    num_points = depth.shape[0]
    f_abs = np.zeros((3, num_points))
    f_rel = np.zeros((3, num_points))

    for stress_idx in (0, 1, 2):
        for pt_idx in range(num_points):
            y = -depth[pt_idx]
            sigma_ana = compute_pressure_and_stresses(t, x, y)[
                stress_idx + 1
            ]  # returns stresses normalised to the pressure amplitude
            sigma_num = (
                sigma[stress_idx][pt_idx] / 0.1e5
            )  # absolute stresses divided by pressure amplitude
            f_abs[stress_idx][pt_idx] = sigma_num - sigma_ana

            if sigma_ana == 0:
                f_rel[stress_idx][pt_idx] = f_abs[stress_idx][pt_idx] / 1e-2
            else:
                f_rel[stress_idx][pt_idx] = f_abs[stress_idx][pt_idx] / sigma_ana

    return f_abs, f_rel

model = ogs.OGS(… (click to toggle)

model = ogs.OGS(
    INPUT_FILE="seabed_response_200x100.prj", PROJECT_FILE="seabed_response_200x100.prj"
)
model.run_model(logfile=f"{out_dir}/out.txt", args=f"-o {out_dir} -m {out_dir}")

OGS finished with project file seabed_response_200x100.prj.
Execution took 82.66266393661499 s
Project file written to output.

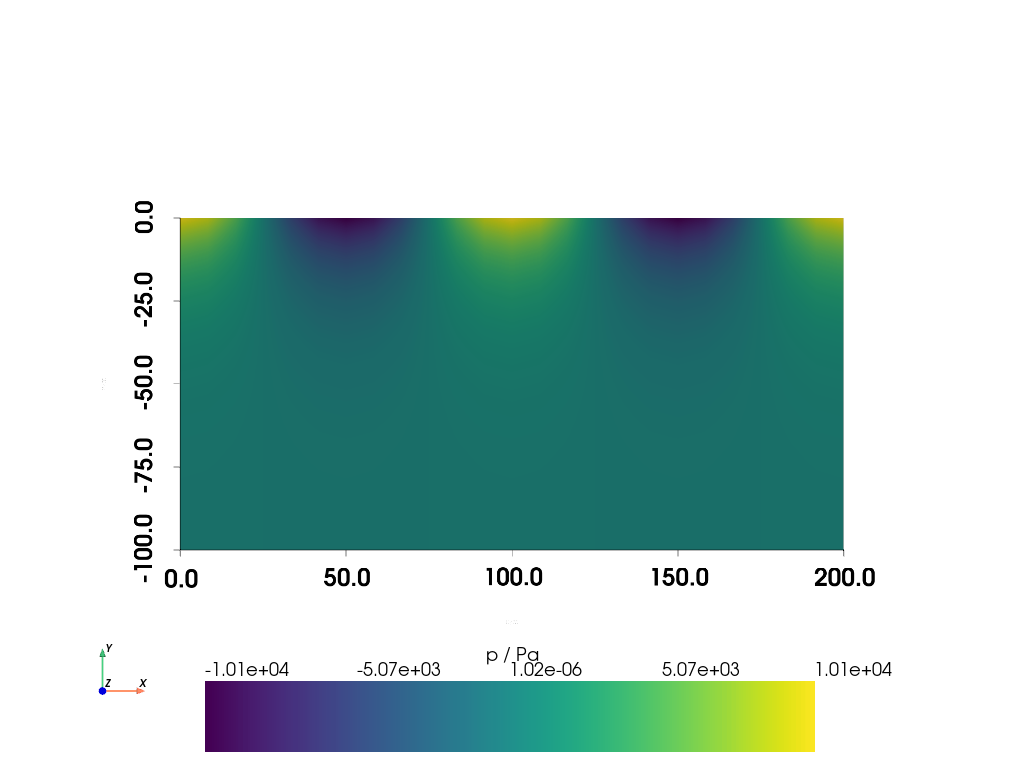

The below plot illustrates the pore pressure distribution in the domain at a timepoint where the applied load is at maximum. By comparing this plot to the 2D-colorplots of the analytical solution, it can already be concluded that the numerical solution resembles the analytical solution.

time = 2.5 # [s]… (click to toggle)

time = 2.5  # [s]
reader = pv.get_reader(f"{out_dir}/square_200x100.pvd")
reader.set_active_time_point(int(time * 4))
mesh = reader.read()[0]

plotter = pv.Plotter()

sargs = dict(title="p / Pa", height=0.25, position_x=0.2, position_y=0.02)  # noqa: C408
plotter.add_mesh(
    mesh,
    scalars="pressure_interpolated",
    show_edges=False,
    show_scalar_bar=True,
    label="p",
    scalar_bar_args=sargs,
)
plotter.show_bounds(ticks="outside", xlabel="x / m", ylabel="y / m")
plotter.add_axes()
plotter.view_xy()
plotter.show()

/var/lib/gitlab-runner/builds/F1XUyv4cx/0/ogs/build/release-all/.venv/lib/python3.11/site-packages/pyvista/plotting/renderer.py:1735: PyVistaDeprecationWarning: `xlabel` is deprecated. Use `xtitle` instead.
  warnings.warn(
/var/lib/gitlab-runner/builds/F1XUyv4cx/0/ogs/build/release-all/.venv/lib/python3.11/site-packages/pyvista/plotting/renderer.py:1741: PyVistaDeprecationWarning: `ylabel` is deprecated. Use `ytitle` instead.
  warnings.warn(

png

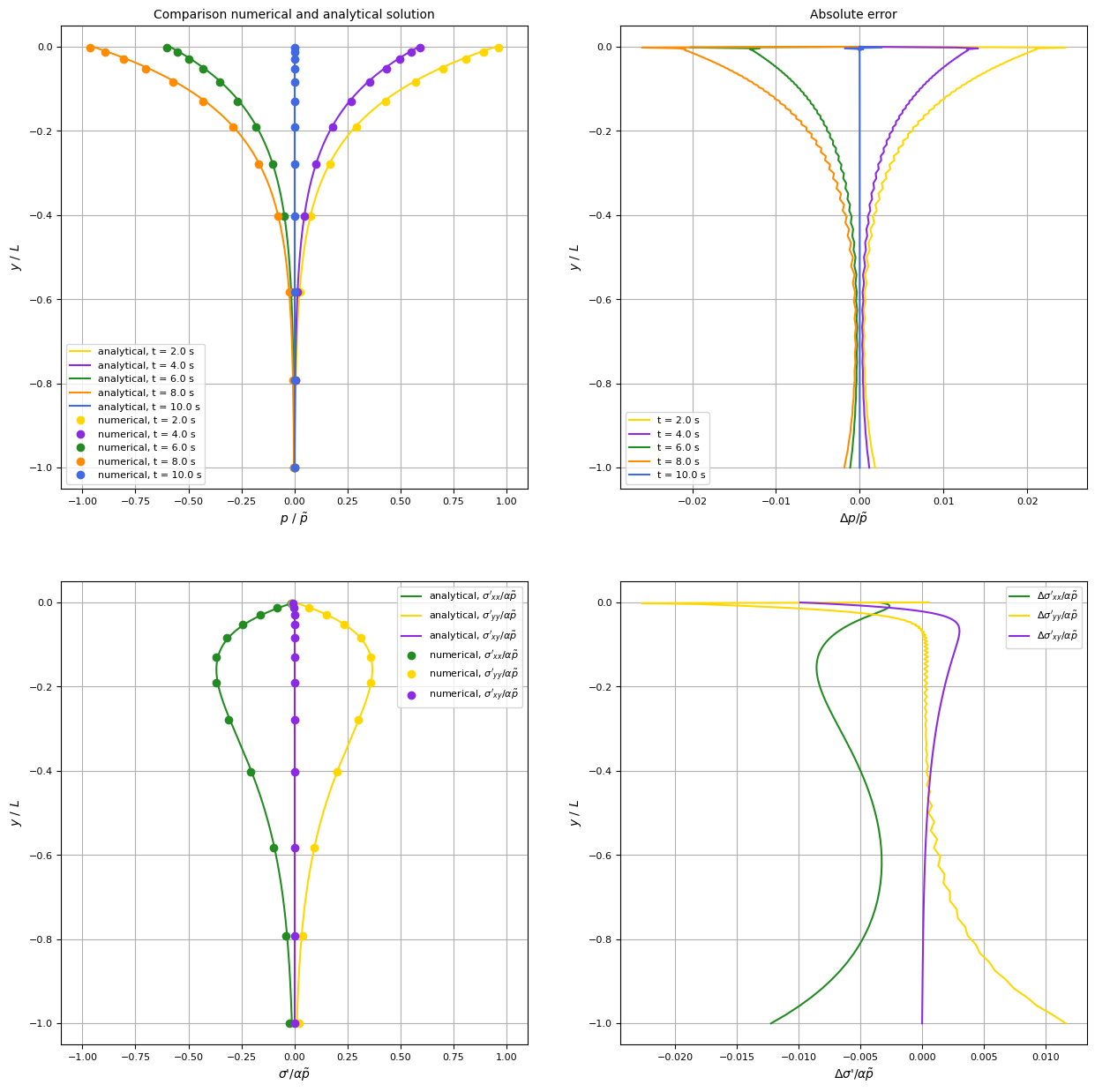

For a more detailed comparison between the analytical and the numerical solution, both solutions are evaluated along the vertical line directly underneath an anti-node of the standing wave. As before, the pore pressure and the amplitude of the effective stresses are illustrated as a function of depth. The results of the numerical solution are marked as dots in the same color as the analytical solution. Additionally, the absolute errors $\Delta p = p_{numerical}-p_{analtical}$ and $\Delta \sigma_{i}' = \sigma_{i, numerical}'-\sigma_{i, analytical}'$ are illustrated on the right.

The plot shows that the absolute errors are very small at about $2 \%$ of the wave’s amplitude. They can mostly be ascribed to the space- and time-discretization. Close to the top boundary of the domain, larger errors occur. These errors could originate in the definition of both a pressure and displacement (Neumann-) boundary condition along the top edge.

x = 0… (click to toggle)

x = 0
y = np.linspace(0, 100, 1000)
y_rel = y / 100
colors = {
    0: "orangered",
    2: "gold",
    4: "blueviolet",
    6: "forestgreen",
    8: "darkorange",
    10: "royalblue",
}

fig, ax = plt.subplots(ncols=2, nrows=2, figsize=(15, 15))

## Plotting analytical solution
for t in [2, 4, 6, 8, 10]:
    ax[0][0].plot(
        compute_pressure_and_stresses(t, x, y)[0],
        -y_rel,
        color=colors[t],
        label=f"analytical, t = {t:.1f} s",
    )

ax[1][0].plot(
    compute_pressure_and_stresses(2.5, x, y)[1],
    -y_rel,
    color=colors[6],
    label="analytical, $\\sigma'_{xx}/\\alpha\\tilde{p}$",
)
ax[1][0].plot(
    compute_pressure_and_stresses(2.5, x, y)[2],
    -y_rel,
    color=colors[2],
    label="analytical, $\\sigma'_{yy}/\\alpha\\tilde{p}$",
)
ax[1][0].plot(
    compute_pressure_and_stresses(2.5, x, y)[3],
    -y_rel,
    color=colors[4],
    label="analytical, $\\sigma'_{xy}/\\alpha\\tilde{p}$",
)

## Plotting numerical solution
p1 = (x + 1e-6, 0, 0)
p2 = (x + 1e-6, -100, 0)

for t_num in (2, 2.5, 4, 6, 8, 10):
    mesh = read_timestep_mesh(200, t_num)

    line_mesh = slice_along_line(mesh, p1, p2)
    pressure = get_pressure_sorted(line_mesh)
    sigma = get_stresses_sorted(line_mesh)
    depth = get_depth_sorted(line_mesh)
    f_abs_pressure = compute_abs_and_rel_pressure_error(pressure, depth, t_num, x)[0]
    f_abs_sigma = compute_abs_and_rel_stress_error(sigma, depth, t_num, x)[0]

    if t_num != 2.5:
        ax[0][0].plot(
            pressure / 0.1e5,
            depth / 100,
            "o",
            markevery=10,
            color=colors[t_num],
            label=f"numerical, t = {t_num:.1f} s",
        )
        ax[0][0].set_xlabel("$p$ / $\\tilde{p}$")

        ax[0][1].plot(
            f_abs_pressure, depth / 100, color=colors[t_num], label=f"t = {t_num:.1f} s"
        )
        ax[0][1].set_xlabel("$\\Delta p /\\tilde{p}$")

    if t_num == 2.5:
        ax[1][0].plot(
            sigma[0] / 0.1e5,
            depth / 100,
            "o",
            markevery=10,
            color=colors[6],
            label="numerical, $\\sigma'_{xx}/\\alpha\\tilde{p}$",
        )
        ax[1][0].plot(
            sigma[1] / 0.1e5,
            depth / 100,
            "o",
            markevery=10,
            color=colors[2],
            label="numerical, $\\sigma'_{yy}/\\alpha\\tilde{p}$",
        )
        ax[1][0].plot(
            sigma[2] / 0.1e5,
            depth / 100,
            "o",
            markevery=10,
            color=colors[4],
            label="numerical, $\\sigma'_{xy}/\\alpha\\tilde{p}$",
        )
        ax[1][0].set_xlabel("$\\sigma$'/$\\alpha\\tilde{p}$")

        ax[1][1].plot(
            f_abs_sigma[0],
            depth / 100,
            color=colors[6],
            label="$\\Delta\\sigma'_{xx}/\\alpha\\tilde{p}$",
        )
        ax[1][1].plot(
            f_abs_sigma[1],
            depth / 100,
            color=colors[2],
            label="$\\Delta\\sigma'_{yy}/\\alpha\\tilde{p}$",
        )
        ax[1][1].plot(
            f_abs_sigma[2],
            depth / 100,
            color=colors[4],
            label="$\\Delta\\sigma'_{xy}/\\alpha\\tilde{p}$",
        )
        ax[1][1].set_xlabel("$\\Delta\\sigma$'/$\\alpha\\tilde{p}$")

        # ax[1][0].plot(sigma[3]/0.1e5, depth/100, "o", markevery=10, color = colors[4], label = "numerical, $\\sigma'_{zz}/\\alpha\\tilde{p}$")

## layout settings
ax[0][0].set_title("Comparison numerical and analytical solution")
ax[0][1].set_title("Absolute error")

for idx_1 in (0, 1):
    for idx_2 in (0, 1):
        ax[idx_1][idx_2].grid(True)
        ax[idx_1][idx_2].set_ylabel("$y$ / $L$")
        ax[idx_1][0].set_xlim(-1.1, 1.1)
        ax[idx_1][idx_2].legend()

png

References

[1] Verruijt, A. (2016): Theory and problems of poroelasticity. Available online at https://geo.verruijt.net/.
