Create Boundary Condition in Polygonal Region

General

In order to create boundary conditions in a polygonal region the following workflow can be used:

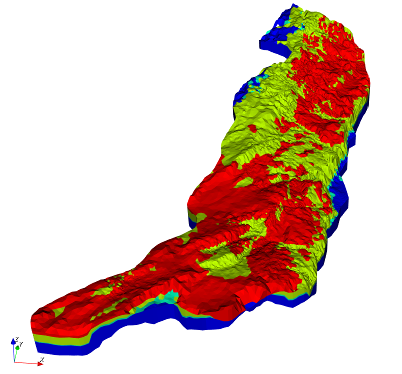

  1. Extract surface using ExtractSurface (a: Original subsurface mesh; b: Extracted surface)

    Sub-surface mesh
    Sub-surface mesh

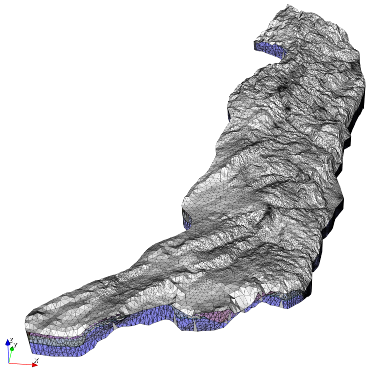

    Extracted surface
    Extracted surface

  2. Mark the mesh elements within the polygonal region deploying the tool ResetPropertiesInPolygonalRegions

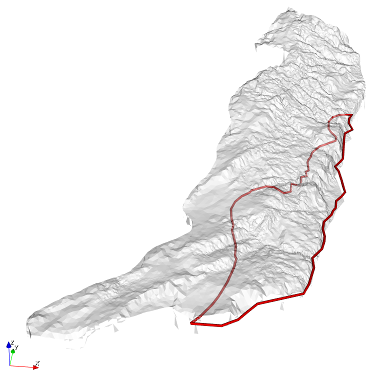

    Surface and polygon
    Surface and polygon

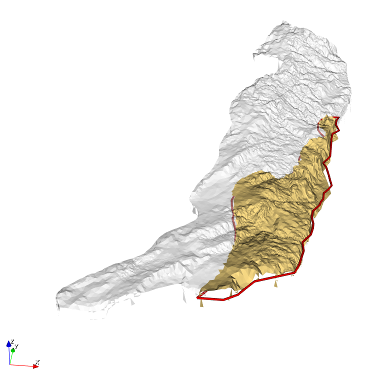

    Marked elements in polygonal region are colored yellow
    Marked elements in polygonal region are colored yellow

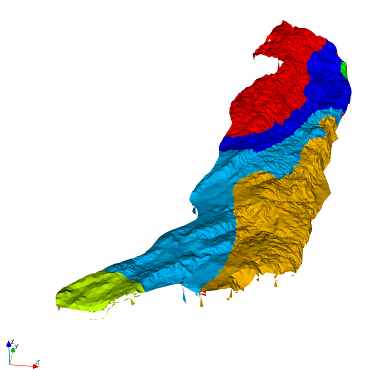

    Marked regions visualized by different colors
    Marked regions visualized by different colors

  3. Remove marked/unmarked mesh elements deploying tool removeMeshElements

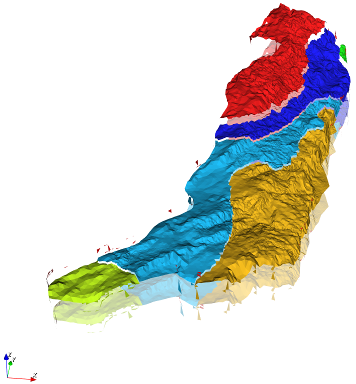

    Resulting patches visualized by different colors and z-translations
    Resulting patches visualized by different colors and z-translations

  4. Compute the associated area for the nodes of the surface mesh deploying tool ComputeNodeAreasFromSurfaceMesh

The surface mesh patches (created until step 3) can be used as input for OGS-6 simulations. For OGS-5 simulations only the additional step 4 has to be performed.
